OLE7.5 Oracle 19c Single ASM-2

구성 환경

VMWARE	VIRTUALBOX 6.1.22
OS	Oracle Linux 7.5
HostName	ole7ora19casm
DB	19.3.0.0
SID	ORCL
LISTENER	1521
FILESYSTEM	ASM



OLE7.5 Oracle ASM DISK Configuration
OLE7.5 Oracle 19c Single ASM-1 Installation

OLE7.5 Oracle ASM DISK Configuration



OLE7.5 Oracle 19c Single ASM-1

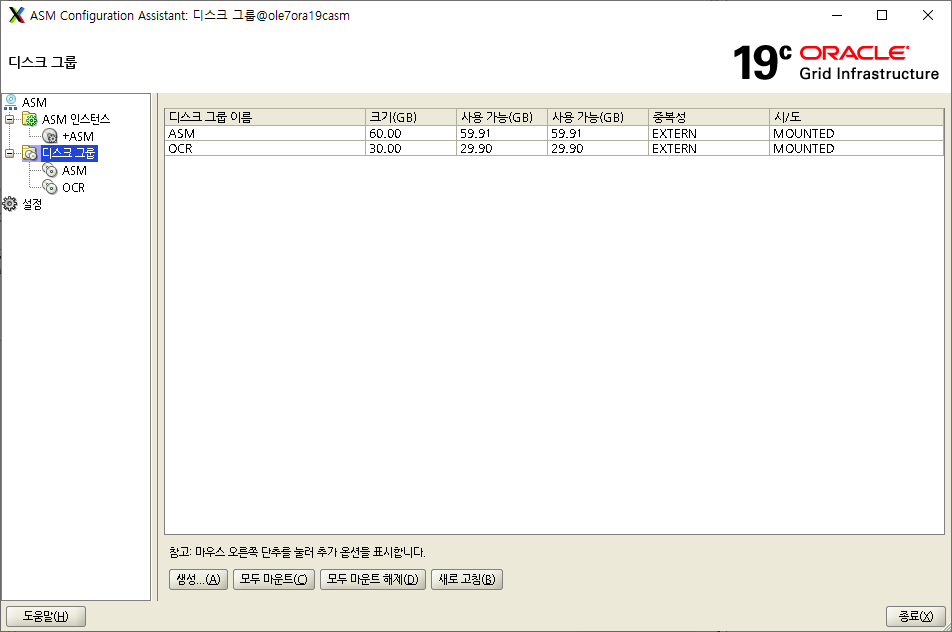

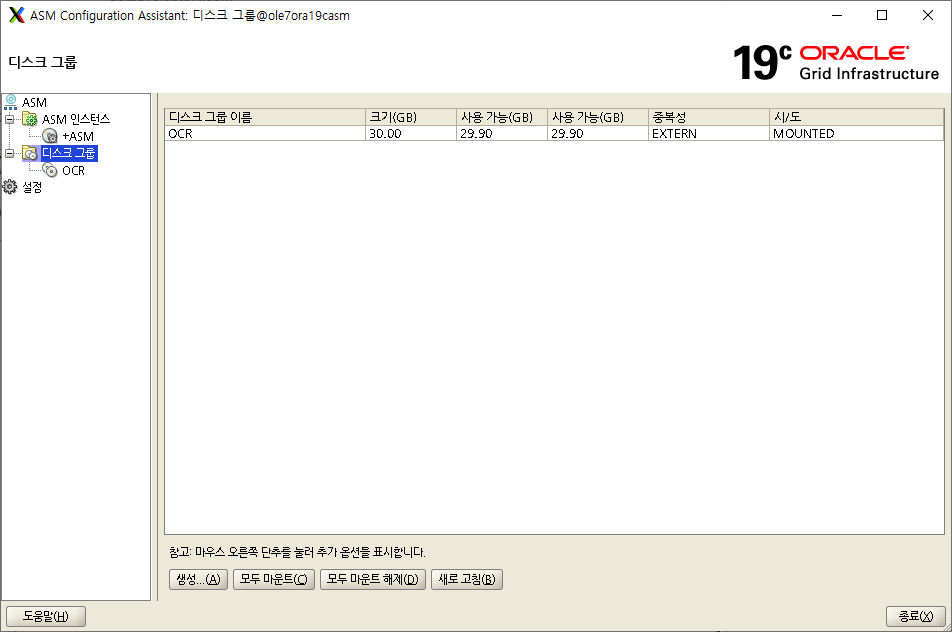

ASM Configuration Assistant

[oracle@ole7ora19casm bin]$ ./asmca



Oracle DB engin Installation

Oracle Engin File

[oracle@ole7ora19casm dbhome_1]$ pwd /u01/app/oracle/product/19.0.0/dbhome_1 [oracle@ole7ora19casm dbhome_1]$ ls -alrt 합계 2987996 -rwxr-xr-x. 1 oracle oinstall 3059705302  9월 30  2019 LINUX.X64_193000_db_home.zip drwxr-xr-x. 3 oracle oinstall         22 10월 29 16:26 .. drwxr-xr-x. 2 oracle oinstall         42 11월  8 13:11 . [oracle@ole7ora19casm dbhome_1]$ unzip LINUX.X64_193000_db_home.zip

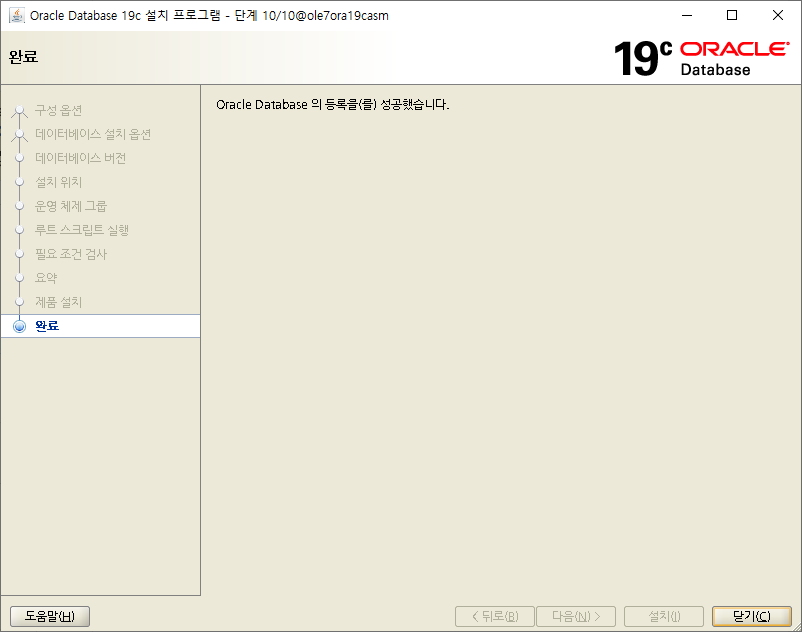

Oracle Engin Installation

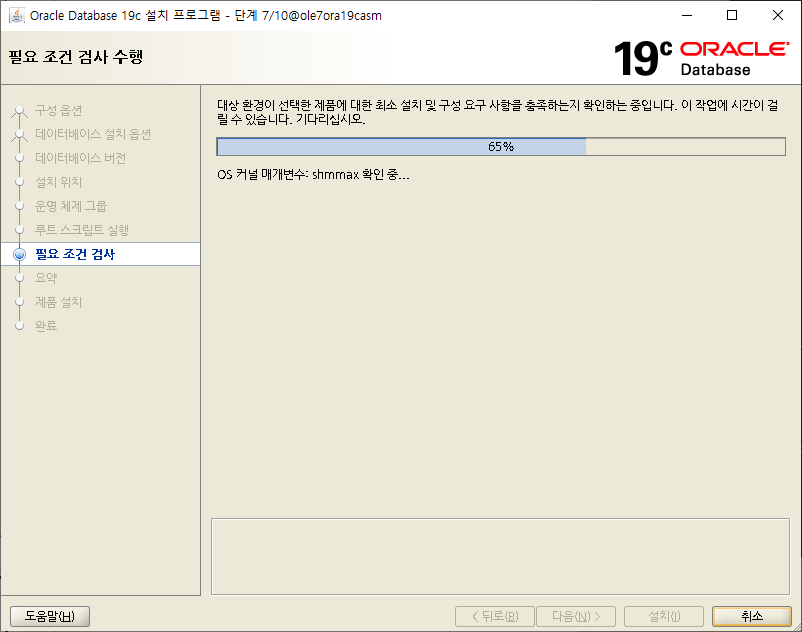

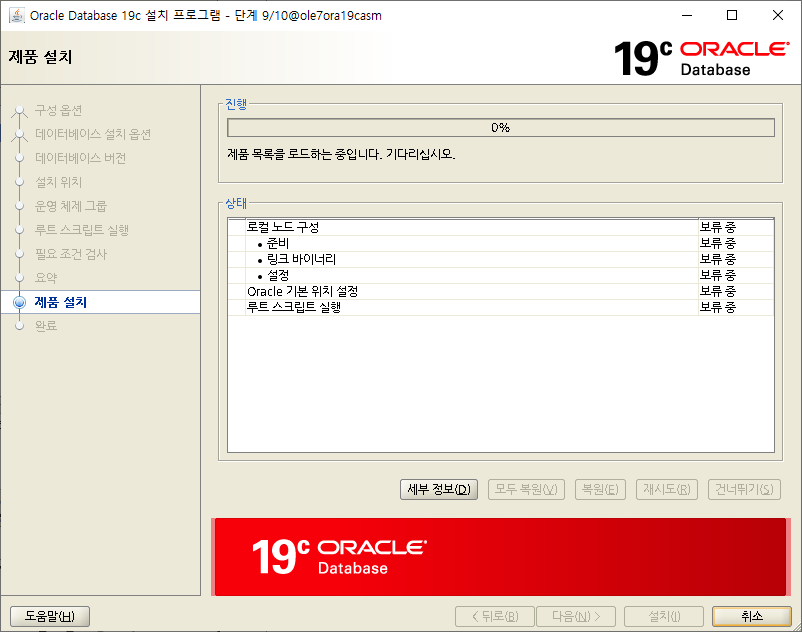

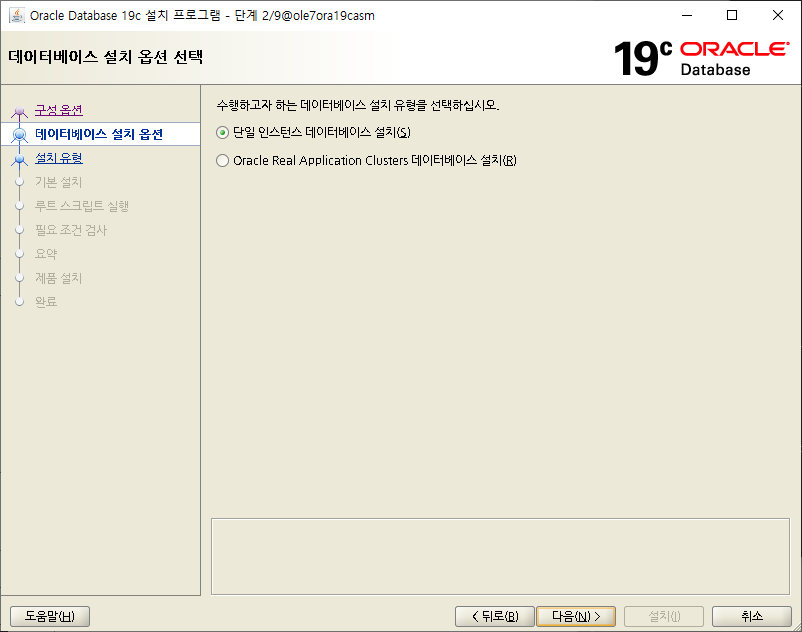

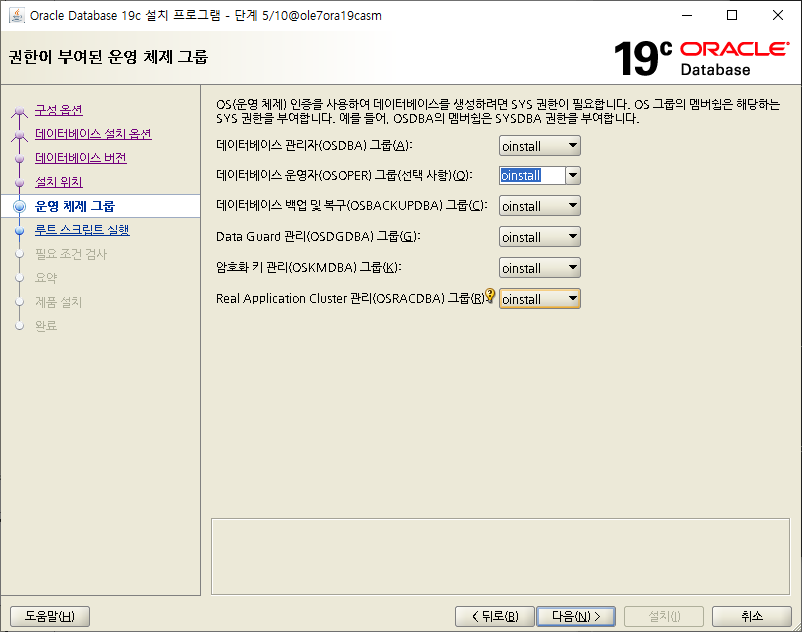

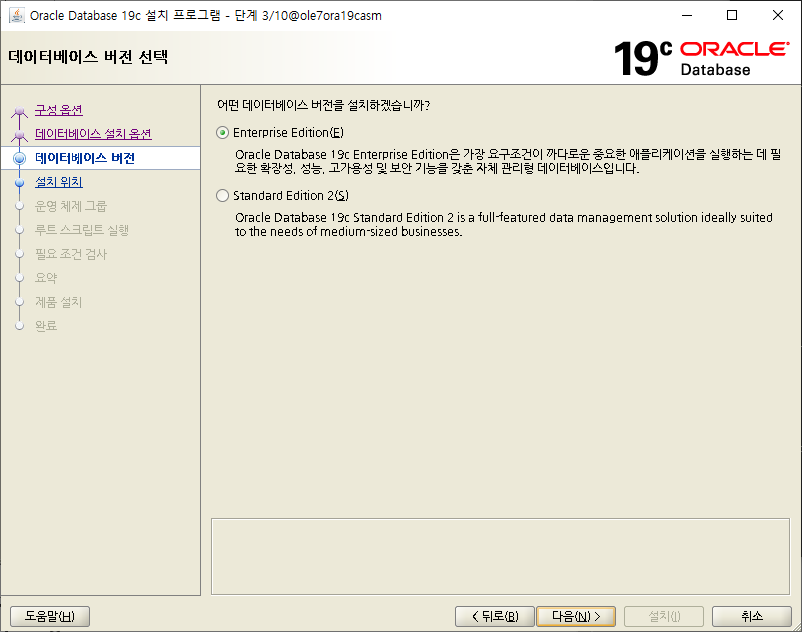

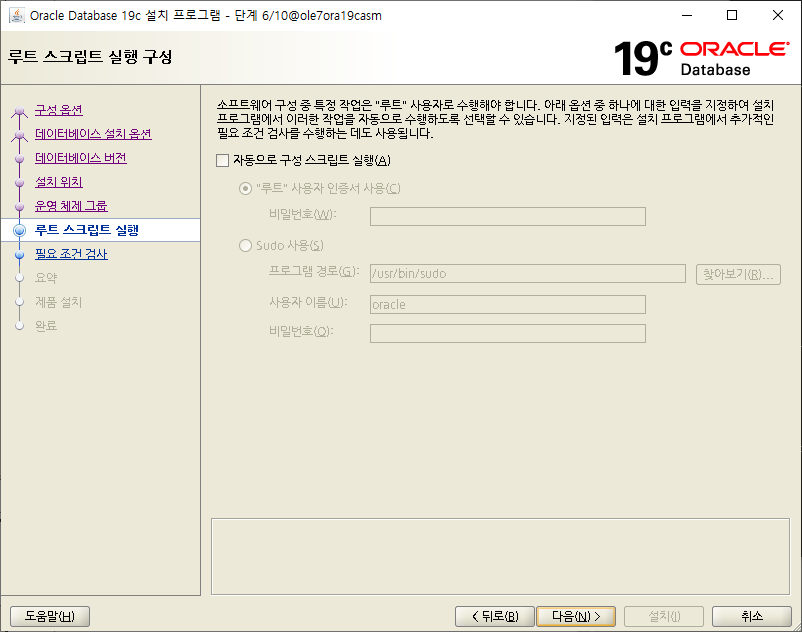

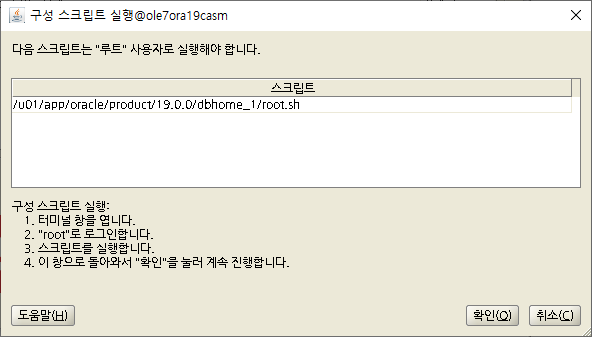

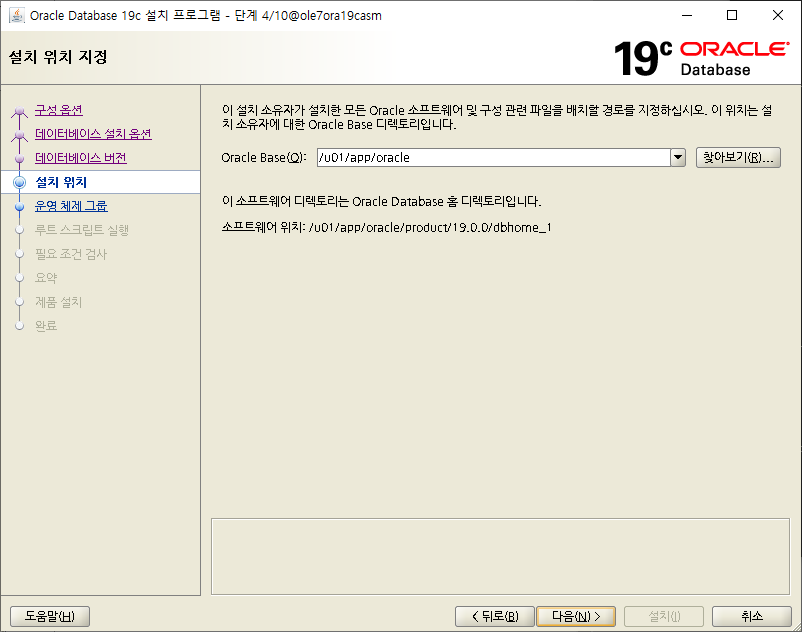

[oracle@ole7ora19casm dbhome_1]$ ./runInstaller

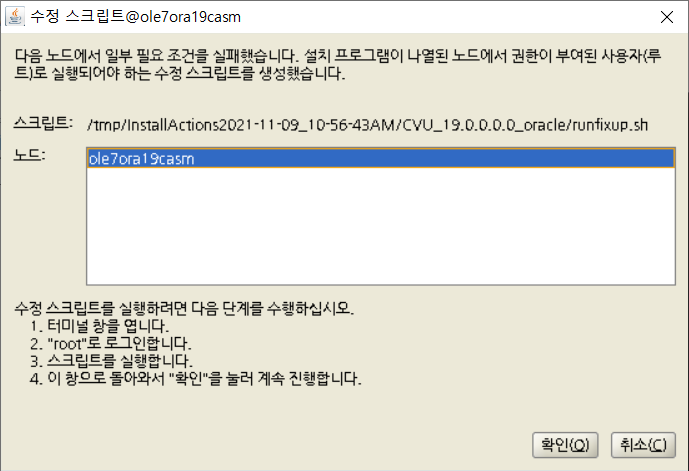

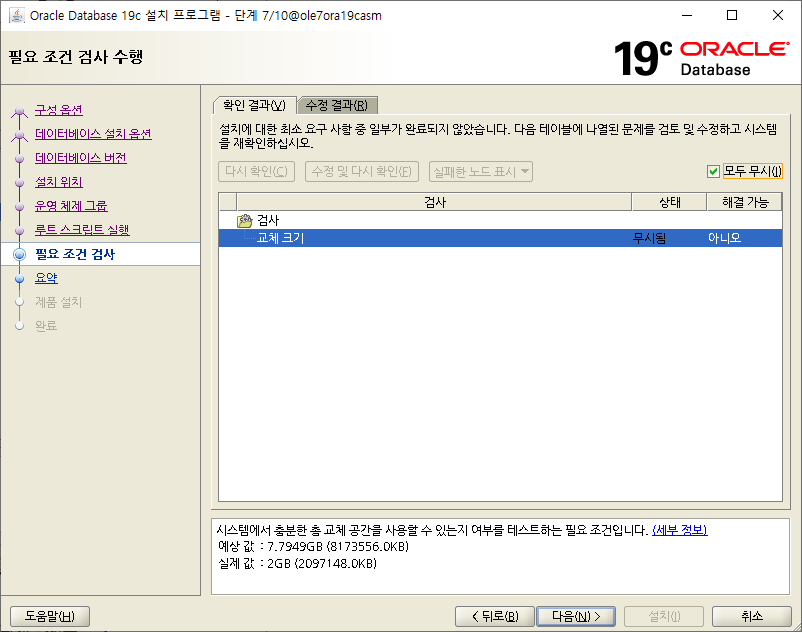

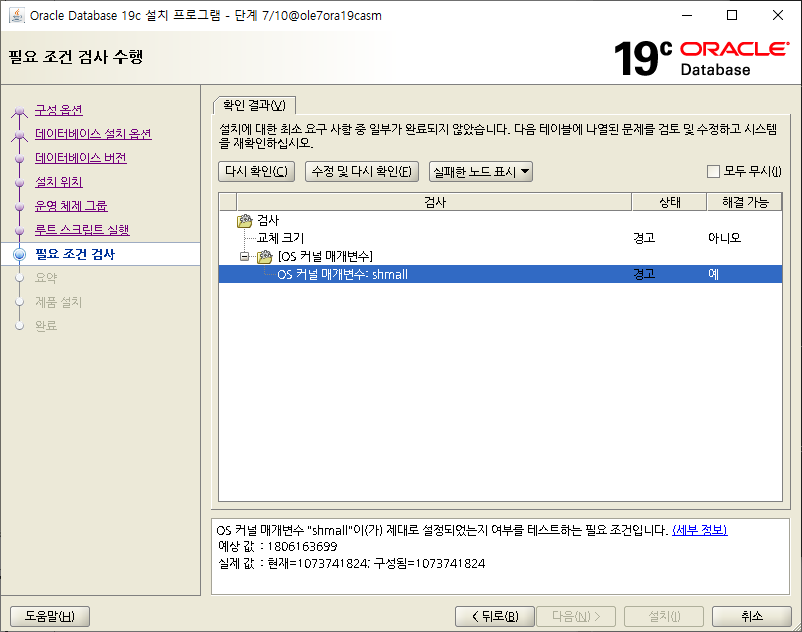

[root@ole7ora19casm ~]# /tmp/InstallActions2021-11-09_10-56-43AM/CVU_19.0.0.0.0_oracle/runfixup.sh All Fix-up operations were completed successfully.



DB Instance Installation

DB Instance Installation

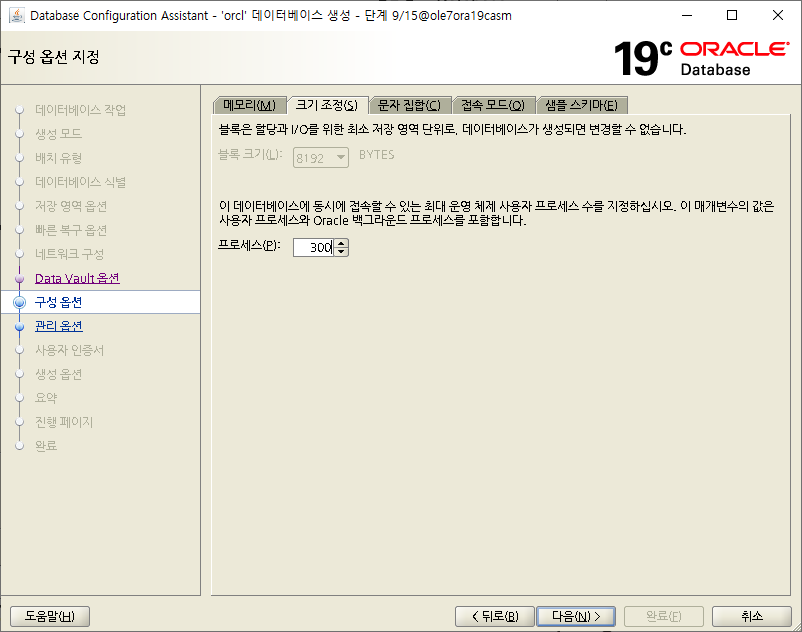

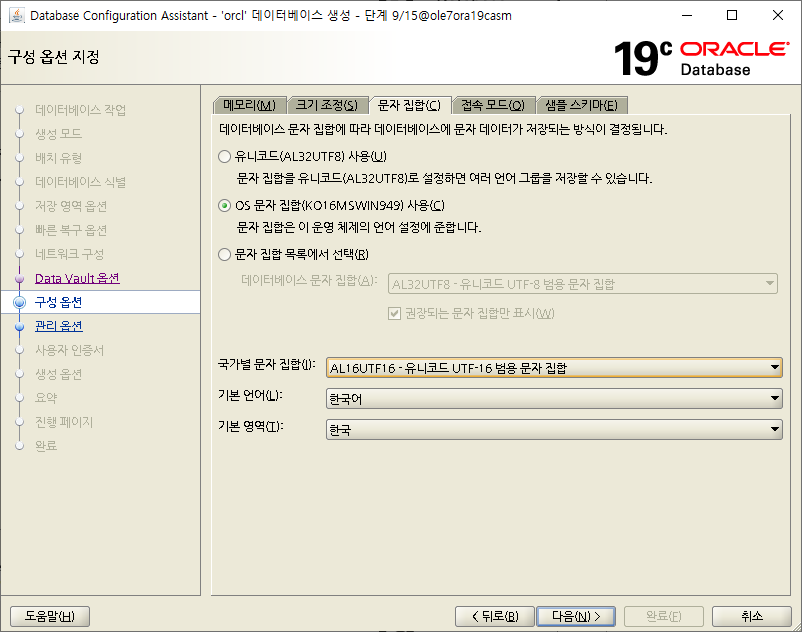

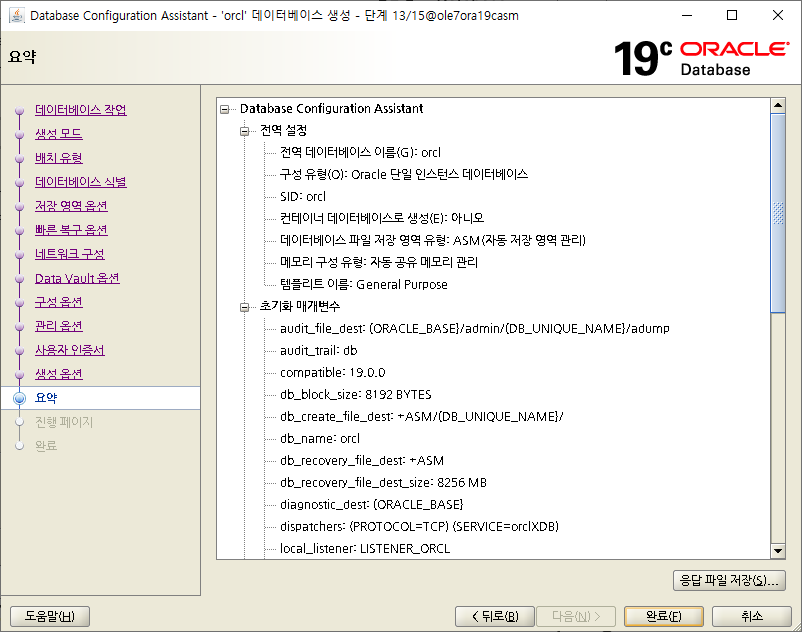

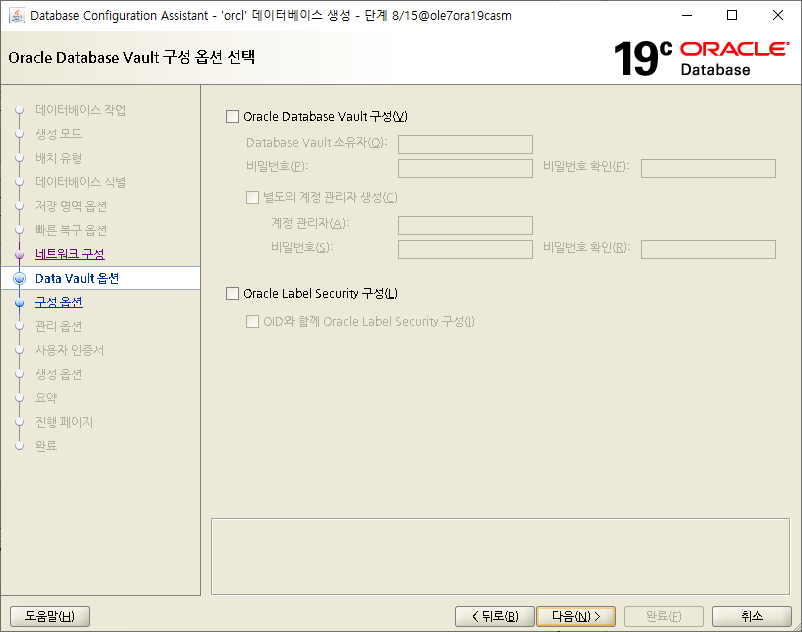

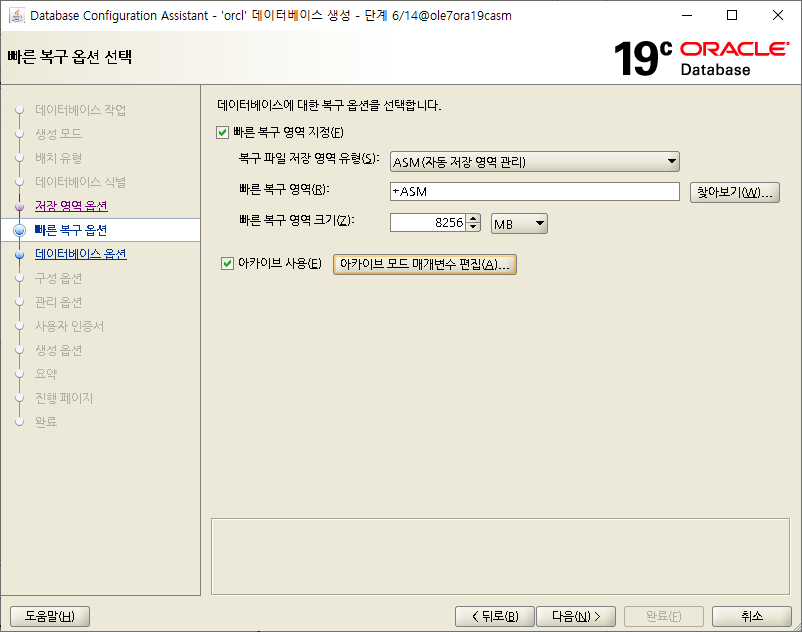

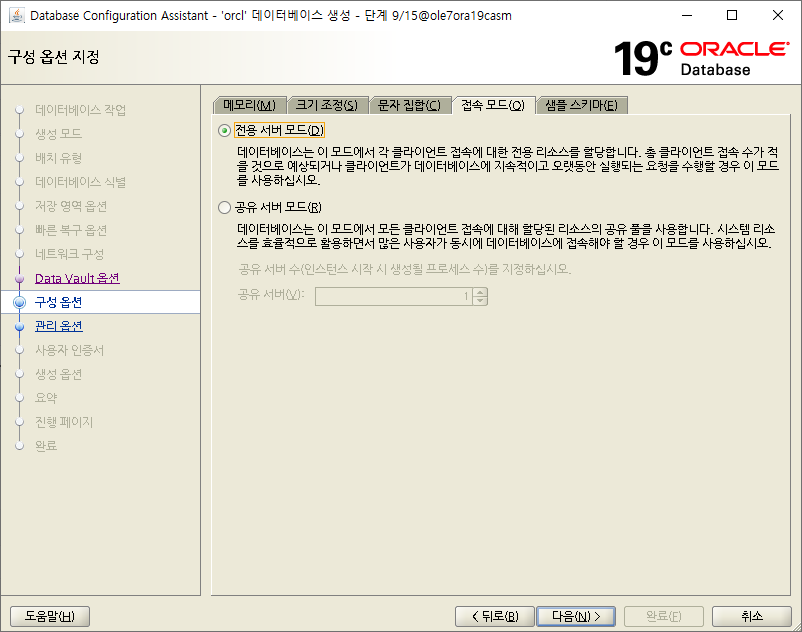

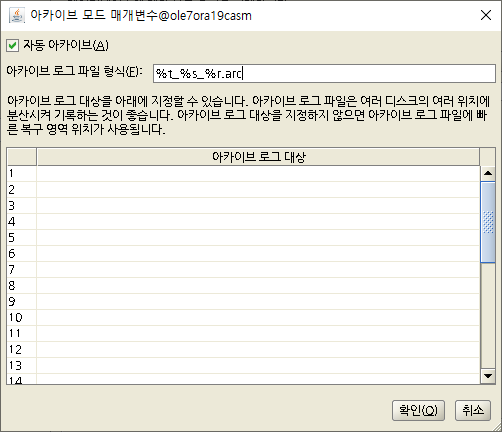

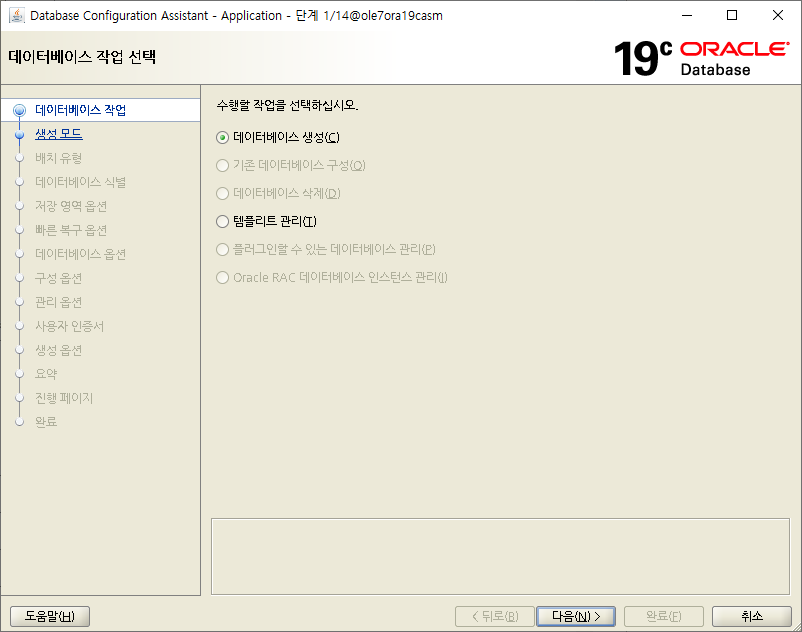

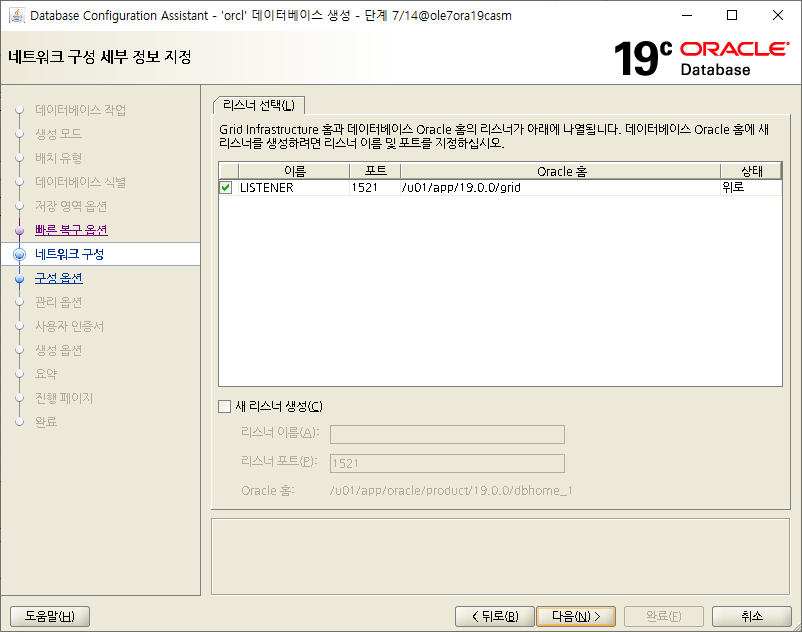

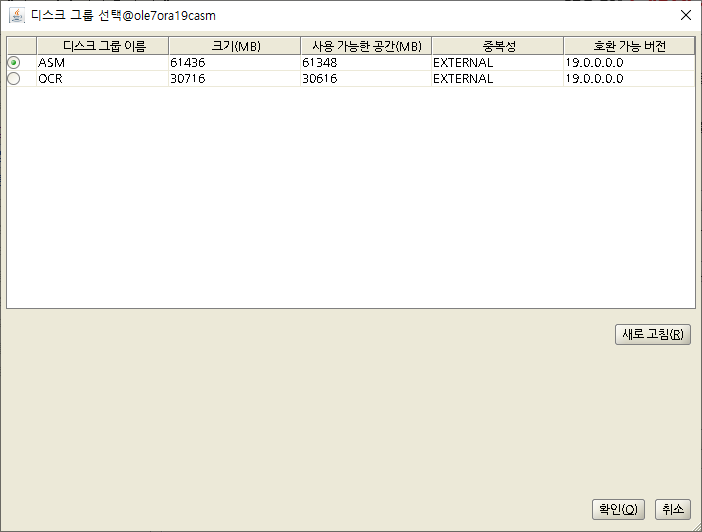

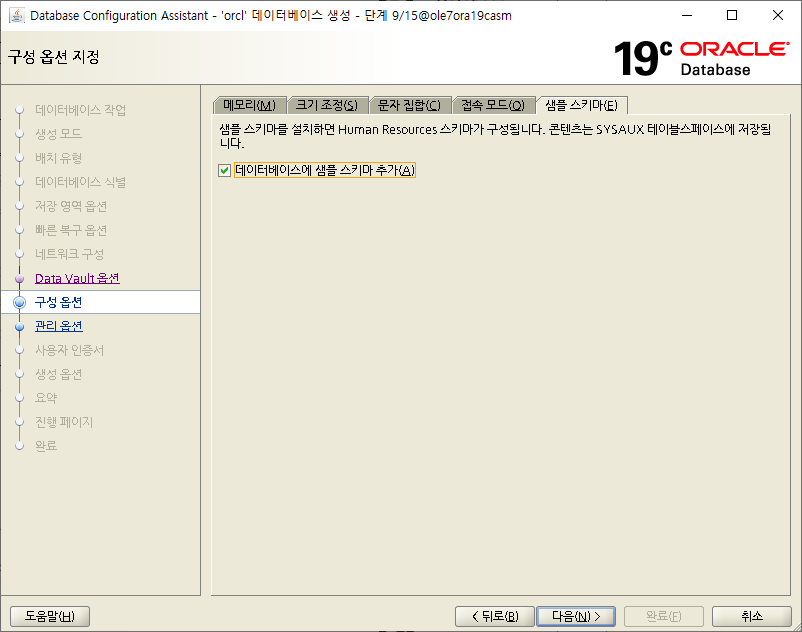

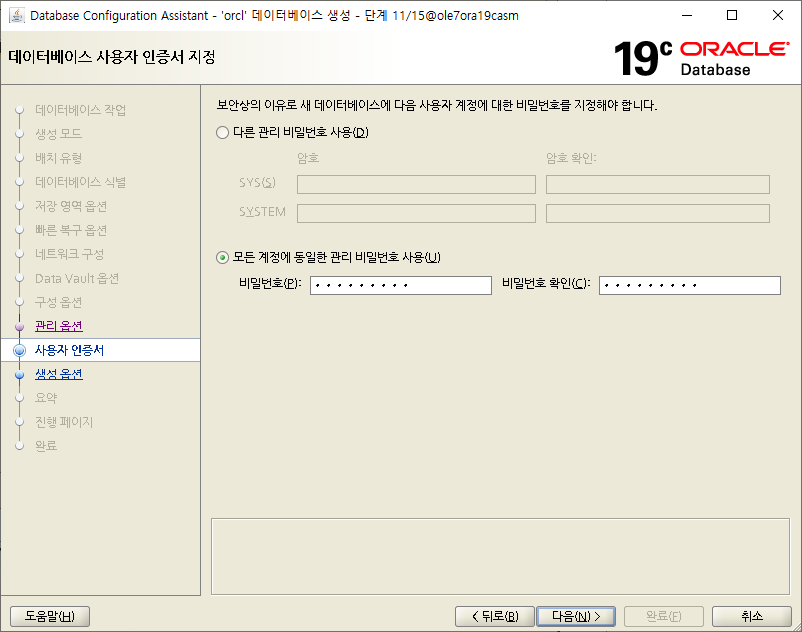

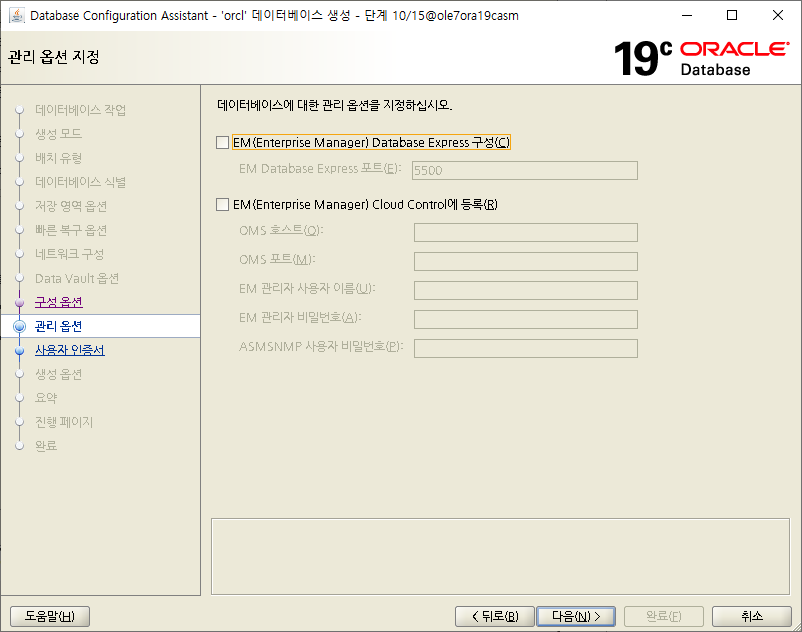

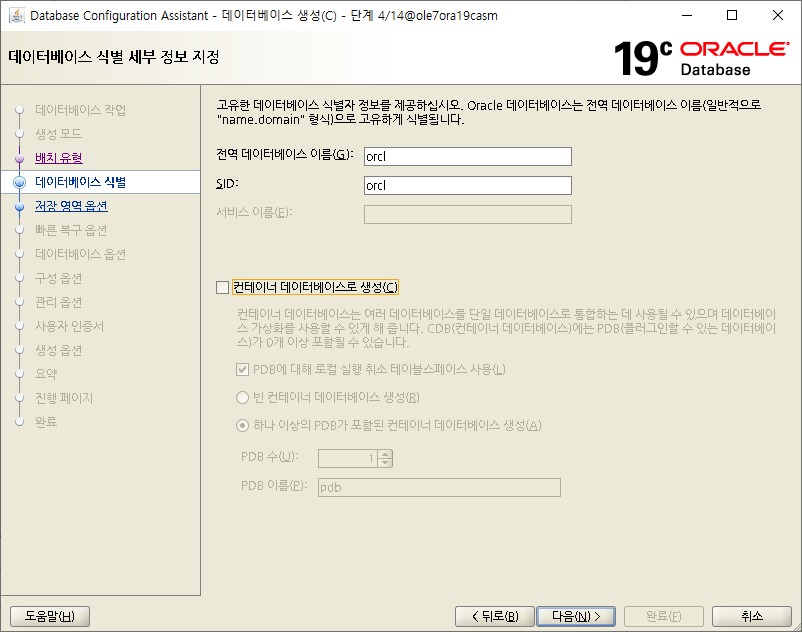

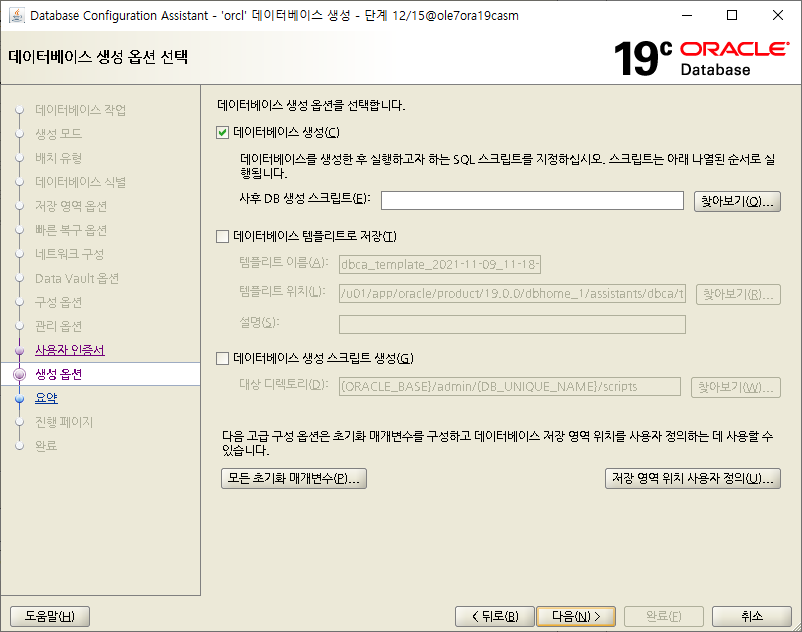

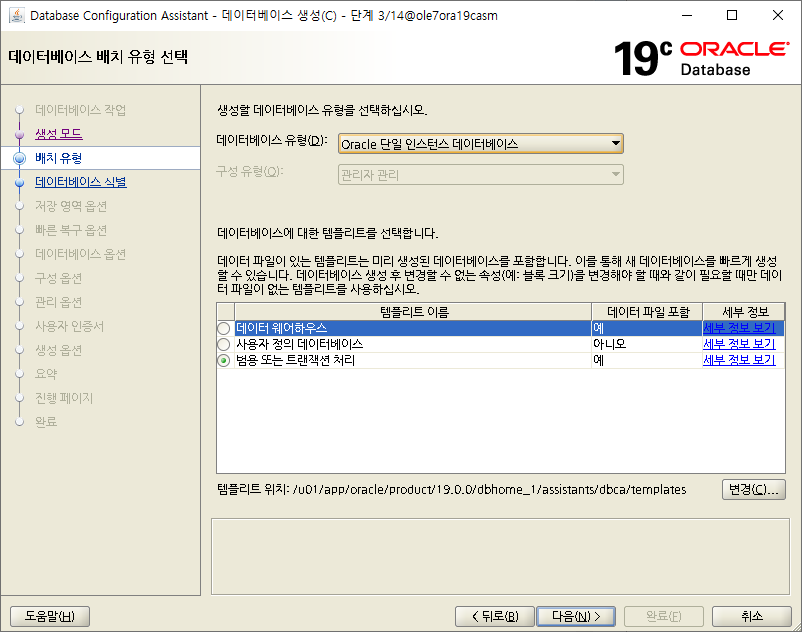

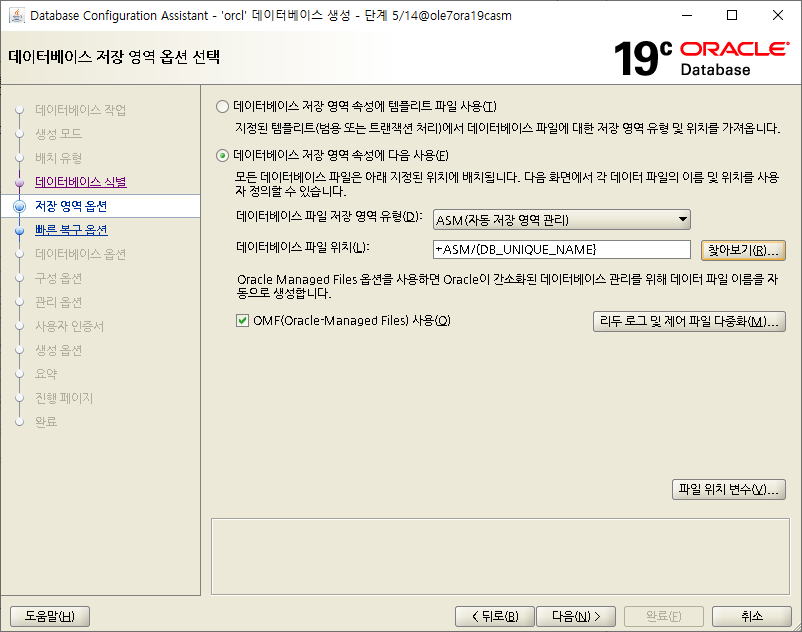

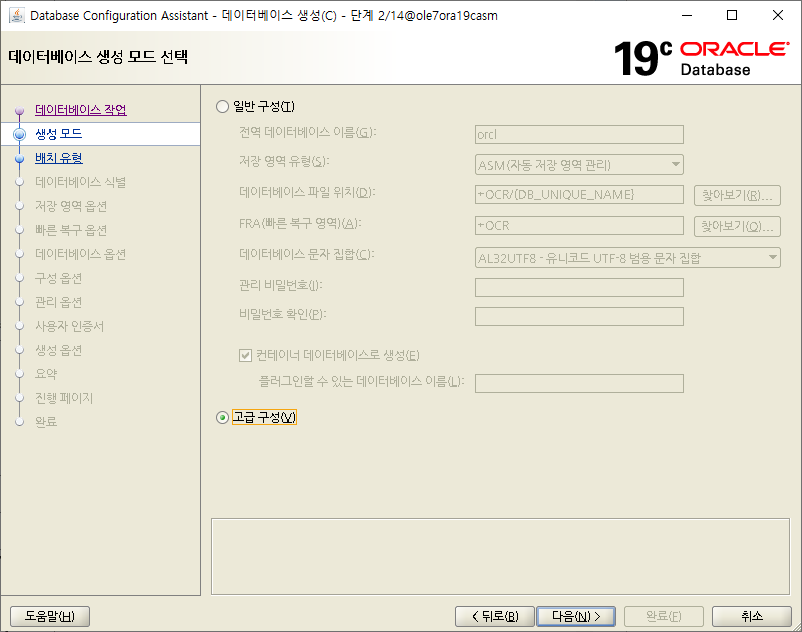

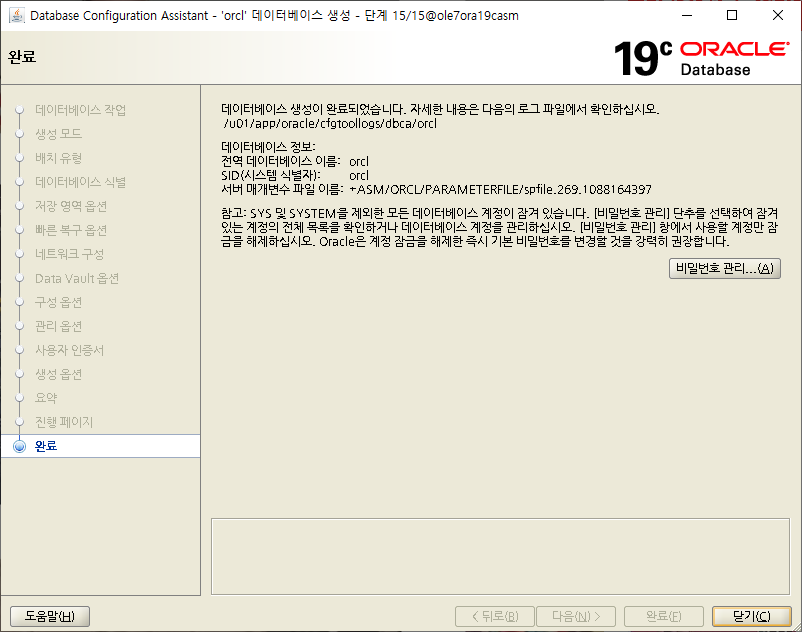

[oracle@ole7ora19casm dbhome_1]$ dbca

Instance check

[oracle@ole7ora19casm bin]$ ps -ef | grep pmon oracle    2698     1  0 09:59 ?        00:00:00 asm_pmon_+ASM oracle   26063     1  0 11:59 ?        00:00:00 ora_pmon_orcl oracle   27539 17203  0 12:15 pts/1    00:00:00 grep --color=auto pmon Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production Version 19.3.0.0.0 SQL> select instance_name , status from v$instance; INSTANCE_NAME    STATUS ---------------- ------------ orcl             OPEN

[oracle@ole7ora19casm bin]$ ./crsctl status res -t -------------------------------------------------------------------------------- Name           Target  State        Server                   State details -------------------------------------------------------------------------------- Local Resources -------------------------------------------------------------------------------- ora.ASM.dg                ONLINE  ONLINE       ole7ora19casm            STABLE ora.LISTENER.lsnr                ONLINE  ONLINE       ole7ora19casm            STABLE ora.OCR.dg                ONLINE  ONLINE       ole7ora19casm            STABLE ora.asm                ONLINE  ONLINE       ole7ora19casm            Started,STABLE ora.ons                OFFLINE OFFLINE      ole7ora19casm             STABLE -------------------------------------------------------------------------------- Cluster Resources -------------------------------------------------------------------------------- ora.cssd       1        ONLINE  ONLINE       ole7ora19casm            STABLE ora.diskmon       1        OFFLINE OFFLINE                                      STABLE ora.evmd       1        ONLINE  ONLINE       ole7ora19casm            STABLE ora.orcl.db       1        ONLINE  ONLINE       ole7ora19casm            Open,HOME=/u01/app/o                                                                              racle/product/19.0.0                                                                              /dbhome_1,STABLE --------------------------------------------------------------------------------
